Description:
Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.
Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um
Quick Detail:
0.5-0.6um Ultra-Fine grain size solid carbide rod

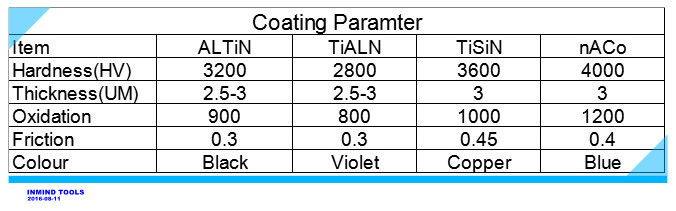

TIALN Coating (Purple),TiSiAlN(Copper), AlTiN ( Black)
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC55
1 piece packing.
Standard Length Type
Applications:
Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material with fiberglass,Also fit for milling copper.
Specifications:
| Order No | Cutting Diameter | Flute Length | Shank Diameter | A.O.L |
| d | l | D | L |
| | | | | |
| R1.0×4×4D×50L×2F | 2 | 4 | 4 | 50 |
| R1.25×5×4D×50L×2F | 2.5 | 4 | 5 | 50 |
| R1.5×6×4D×50L×2F | 3 | 4 | 6 | 50 |
| R1.75×7×4D×50L×2F | 3.5 | 4 | 7 | 50 |
| R2.0×8×4D×50L×2F | 4 | 4 | 8 | 50 |
| | | | | |
we also have other standard size:
| Order No | Cutting Dia | Shank | Cutting Length | A0L |
| d | D | l | L |
| R2.5×10×6D×50L×2F | 5 | 6 | 10 | 50 |
| R3.0×12×6D×50L×2F | 6 | 6 | 12 | 50 |
| R3.5×14×8D×60L×2F | 7 | 8 | 14 | 60 |
| R4.0×16×8D×60L×2F | 8 | 8 | 16 | 60 |
| R4.5×18×10D×75L×2F | 9 | 10 | 18 | 75 |
| R5.0×20×10D×75L×2F | 10 | 10 | 20 | 75 |
| R5.5×22×12D×75L×2F | 11 | 12 | 22 | 75 |
| R6.0×24×12D×75L×2F | 12 | 12 | 24 | 75 |
| R7.0×28×14D×100L×2F | 14 | 14 | 28 | 100 |
| R8.0×32×16D×100L×2F | 16 | 16 | 32 | 100 |
| | | | | |
Competitive Advantage:
Good and Stable Quality.
New Coating TiSiAlN Improve the performance in high hardness material and stainless steel.
Competitive price.
Help the agent to get the get more large market in the quality products.
Packaging
Carbide:
1 pcs in plastic tube, 10 tubes in a small box, and packed in a carton box(around15 kgs/carton)
Step1: One plastic pipe pack one piece, 10 pieces per group
Step2: Use the air bubble paper to encase the plastic paper
Step3: Put the goods encased with air bubble paper into the carton
Step4: Other packing will be accept according to your needs.
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
--- Loading port: Shanghai, Ningbo, China main port.
9-10.pdf
Product Tags:
|
|

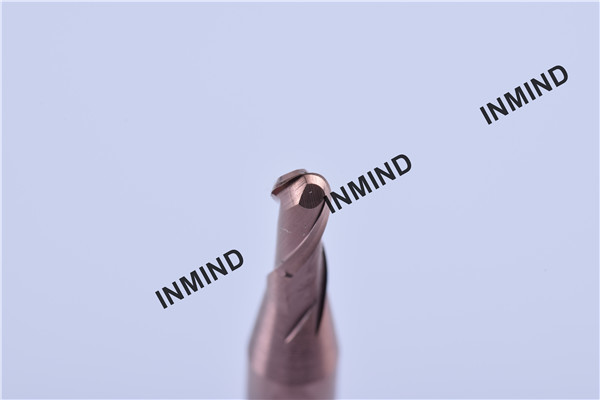

TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM , Straight Shank or 4mm Shank Images
|
